DOOR SPEAKER INSPECTION

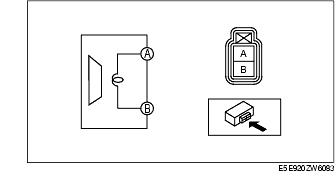

1. Verify the resistance between door speaker terminals.

• If the resistance is not within the specification, replace the door speaker.

Resistance

Standard: 4 ohms

Bose: 1 ohm

2. Connect a 1.5 V battery to the door speaker and verify that noise is heard from the door speaker.

• If no noise is heard, replace the door speaker.
