IGNITION SWITCH REMOVAL/INSTALLATION


id092100800200

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

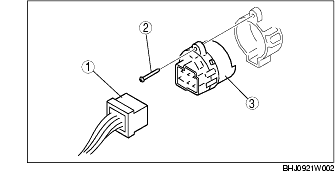

4. Remove in the order indicated in the table.

1
Connector
2
Screw
3
Ignition switch

5. Install in the reverse order of removal.
