RELAY INSPECTION

id092100800300

Relay type

Terminal type

Part name

Type A
• Main relay
• Starter relay
• Drive-by-wire relay
• Blower relay
• Fuel pump relay
• Front fog light relay
• A/C relay
• TNS relay
• Rear window defroster relay
• Horn relay
• Cooling fan relay No.1
• Cooling fan relay No.2
• Cooling fan relay No.3
• Trunk lid opener relay
• Rear fog light relay
Type B
• Headlight relay
• Ignition relay

Type A

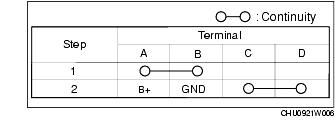

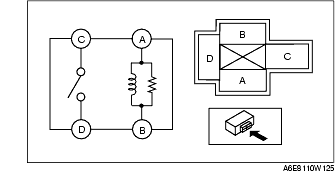

1. Verify the continuity between the relay terminals.

• If not as indicated in the table, replace the relay.

Type B

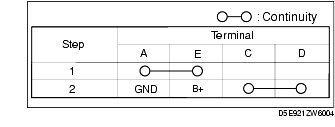

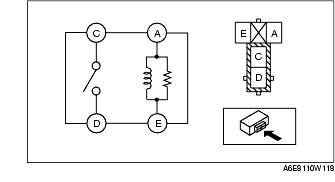

1. Verify the continuity between the relay terminals.

• If not as indicated in the table, replace the relay.
