KEY REMINDER SWITCH REMOVAL/INSTALLATION [EXCEPT ADVANCED KEYLESS SYSTEM]


id0921008010i8

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

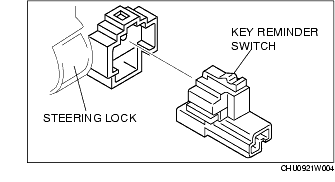

4. Disconnect the key reminder switch connector.

5. Remove the key reminder switch.

6. Install in the reverse order of removal.
