MAIN FUSE REMOVAL/INSTALLATION


id092100801500

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the upper block. (See UPPER BLOCK REMOVAL/INSTALLATION

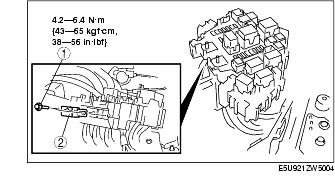

4. Remove in the order indicated in the table.

1
Bolt
2
Main fuse

5. Install in the reverse order of removal.
