REAR FOG LIGHT RELAY REMOVAL/INSTALLATION

Note

• Depending on the period of manufacture, the trunk lid opener relay and rear fog relay positions may be switched. When performing removal/installation and inspection, make determinations based on wiring color.

- Terminal A: blue/red

- Terminal C: light green

- Terminal D: red/blue

- Terminal E: black/green

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

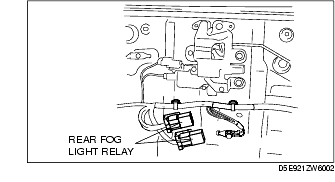

4. Remove the rear fog light relay.

5. Install in the reverse order of removal.
