SEAT BELT WARNING ALARM CONSTRUCTION/OPERATION

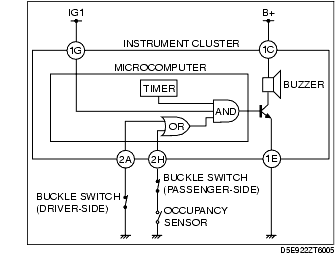

System Wiring Diagram

Operation

• The buzzer in the instrument cluster sounds for 93 s when all the following two conditions are met:

- The seat belt (driver-side or passenger-side) is unfastened (driver-side: buckle switch is on, passenger-side: buckle switch and occupancy sensor are on).

- The vehicle speed is 20 km/h {12.4 mph} or more.
