BURNT OUT BULB CHECK FUNCTION CONSTRUCTION/OPERATION


id092200103200

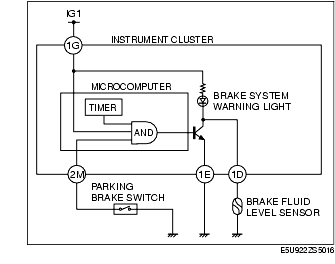

System Wiring Diagram

Operation

• The microcomputer in the instrument cluster illuminates the brake system warning light for approx. 3 s and then turns it off when the ignition switch is turned to the ON position. (When the parking brake switch or the brake fluid level sensor is on, the brake system warning light remains illuminated.)
