POWER RETRACTABLE HARDTOP WARNING ALARM CONSTRUCTION/OPERATION

id092200110300

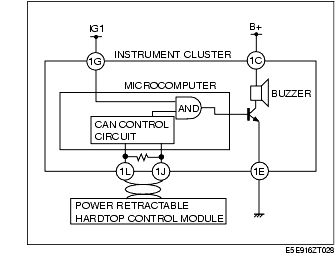

System Wiring Diagram

• A buzzer in the instrument cluster sounds if both of the following two conditions are met:

- Power retractable hardtop operation conditions are met.

- The power retractable hardtop (open/close) switch is pressed.

• A buzzer sounds when the power retractable hardtop open or close operation is completed.

• A buzzer in the instrument cluster sounds if any of the following conditions are met:

- The power retractable hardtop operation conditions are not met when the power retractable hardtop (open/close) switch is pressed.

- The power retractable hardtop (open/close) switch is pressed with the power retractable hardtop system DTC detected.

- The power retractable hardtop (open/close) switch is pressed when the power retractable hardtop is fully closed and the system DTC is stored.

- Power retractable hardtop operation conditions are not met during power retractable hardtop operation.

- An power retractable hardtop system DTC is detected during power retractable hardtop operation.

Warning

• A buzzer in the instrument cluster sounds if any of the following conditions are met with the power retractable hardtop half open.

- Vehicle speed signal is input.

- The selector lever is in any position except P or N (AT vehicles).

- The selector lever is not in neutral (neutral switch normal condition) (MT vehicles).
