HORN REMOVAL/INSTALLATION


id092200497400

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF])

2. Slightly bend back the under cover.

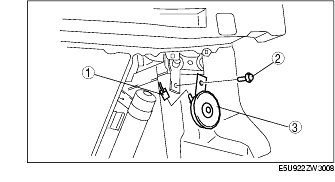

3. Remove in the order indicated in the table.

1
Connector
2
Bolt
3
Horn

4. Install in the reverse order of removal.
