KEY REMINDER WARNING ALARM CONSTRUCTION/OPERATION

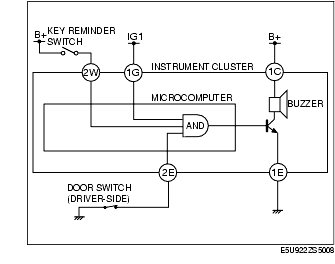

System Wiring Diagram

Operation

• The buzzer in the instrument cluster sounds when all the following three conditions are met:

- The ignition switch is in the LOCK or ACC position.

- The key is in the steering lock (key reminder switch is on).

- The driver-side door is open (driver-side door switch is on).
