LIGHTS-ON REMINDER WARNING ALARM CONSTRUCTION/OPERATION

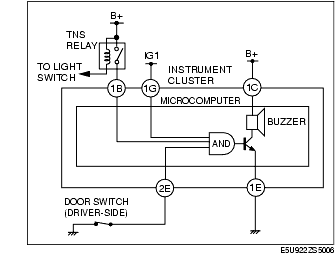

System Wiring Diagram

Operation

• The buzzer in the instrument cluster sounds continuously when all the following three conditions are met:

- The ignition switch is in the LOCK or ACC position.

- The headlight switch is in the TNS or headlight position.

- The driver-side door is open (driver-side door switch is on).
