OCCUPANCY SENSOR INSPECTION

1. Disconnect the occupancy sensor connector.

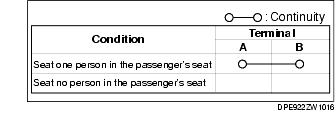

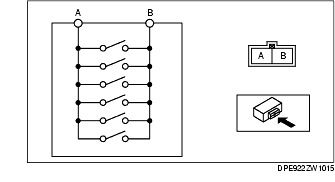

2. Verify that the continuity between the occupancy sensor terminals is as indicated in the table.

• If not as indicated in the table, replace the occupancy sensor.
