MAINSHAFT COMPONENT, COUNTERSHAFT COMPONENT AND TRANSMISSION CASE DISASSEMBLY

d5e051117030m02

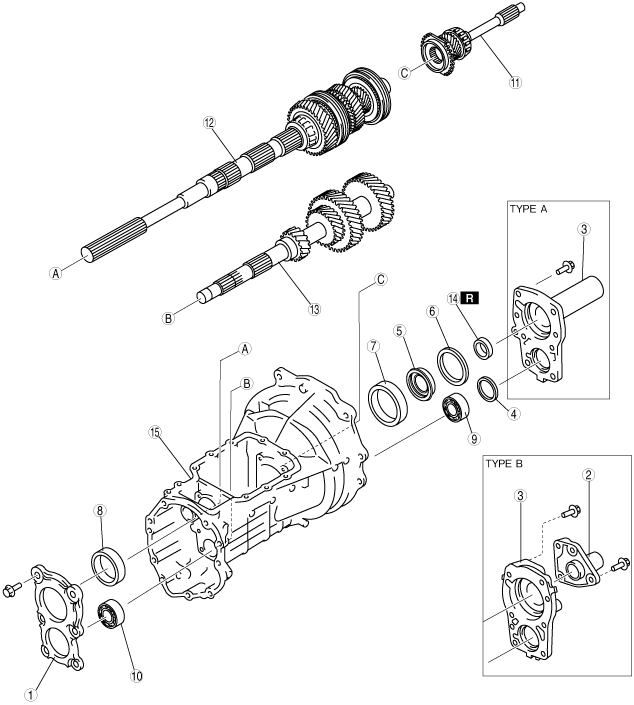

1.  Disassemble in the order indicated in the table.

ghg0517m5001

1	Bearing cover
2	Front cover No.2
3	Front cover (See Front Cover Disassembly Note.)
4	Bearing shim
5	Oil baffle
6	Bearing shim
7	Maindrive gear bearing race (See Bearing Race Disassembly Note.)
8	Mainshaft bearing race (See Bearing Race Disassembly Note.)
9	Countershaft front bearing
10	Countershaft rear bearing
11	Maindrive gear (See Mainshaft Component and Countershaft Component Disassembly Note.)
12	Mainshaft component (See Mainshaft Component and Countershaft Component Disassembly Note.)
13	Countershaft component (See Mainshaft Component and Countershaft Component Disassembly Note.)
14	Front oil seal
15	Transmission case

Front Cover Disassembly Note

1.  Remove the front cover.

Caution

•  Insert the front cover tightening bolts into the bolt holes for the front cover disassembly, tighten the two bolts uniformly and, then remove the front cover.

ghg0517m5002

ghg0517m5003

Bearing Race Disassembly Note

1.  Grasping the mainshaft and countershaft, move them forward and back to remove the bearing races.

e5u511bm5074

Mainshaft Component and Countershaft Component Disassembly Note

1.  Separate the maindrive gear component from the mainshaft component and remove it from the front cover installation holes.

e5u511bm5020

2.  Tilt the mainshaft component as shown in the figure and remove it from the transmission case.

e5u511bm5021

3.  Tilt the countershaft component as shown in the figure and remove it from the transmission case.

e5u511bm5073
