ON-BOARD DIAGNOSTIC OUTLINE [L8, LF]

id0102b1111300

Features

To meet the EOBD regulations

•  Diagnostic test modes adopted

Improved serviceability

•  DTCs adopted

•  KOEO/KOER self test function adopted

•  PID/DATA monitor function adopted

•  Simulation test function adopted

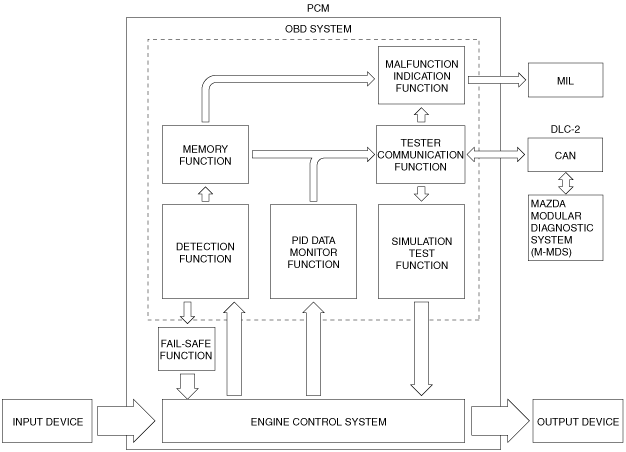

Block Diagram

amxzzn00000106

To meet the EOBD regulations	• Diagnostic test modes adopted
Improved serviceability	• DTCs adopted • KOEO/KOER self test function adopted • PID/DATA monitor function adopted • Simulation test function adopted
