DTC P2123 [L8, LF]

id0102b1811800

DTC P2123

APP sensor No.1 circuit high input

DETECTION CONDITION

•  The PCM monitors the input voltage from APP sensor No.1 when the engine is running. If the input voltage is above 4.8 V, the PCM determines that the APP sensor No.1 circuit input voltage is high.

Diagnostic support note

•  This is a continuous monitor (CCM).

•  The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.

•  FREEZE FRAME DATA (Mode 2/Mode 12) is available.

•  The DTCs is stored in the PCM memory.

POSSIBLE CAUSE

•  APP sensor connector or terminals malfunction

•  PCM connector or terminals malfunction

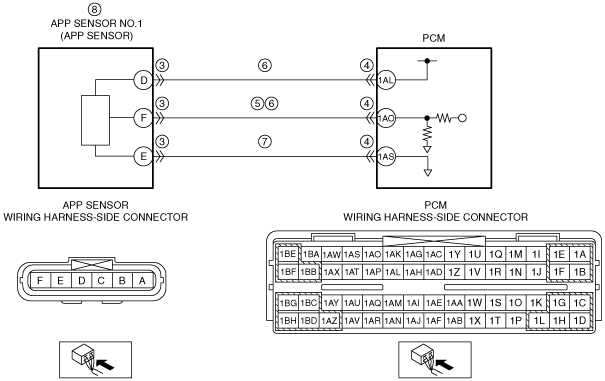

•  Short to power supply in wiring harness between APP sensor terminal F and PCM terminal 1AO

•  APP sensor No.1 power supply circuit and signal circuit are shorted to each other

•  Open circuit in wiring harness between APP sensor terminal E and PCM terminal 1AS

•  APP sensor No.1 malfunction

•  PCM malfunction

DTC P2123	APP sensor No.1 circuit high input
DETECTION CONDITION	• The PCM monitors the input voltage from APP sensor No.1 when the engine is running. If the input voltage is above 4.8 V, the PCM determines that the APP sensor No.1 circuit input voltage is high. Diagnostic support note • This is a continuous monitor (CCM). • The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle. • FREEZE FRAME DATA (Mode 2/Mode 12) is available. • The DTCs is stored in the PCM memory.
POSSIBLE CAUSE	• APP sensor connector or terminals malfunction • PCM connector or terminals malfunction • Short to power supply in wiring harness between APP sensor terminal F and PCM terminal 1AO • APP sensor No.1 power supply circuit and signal circuit are shorted to each other • Open circuit in wiring harness between APP sensor terminal E and PCM terminal 1AS • APP sensor No.1 malfunction • PCM malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	VERIFY FREEZE FRAME DATA (MODE 12) HAS BEEN RECORDED • Has the FREEZE FRAME DATA (Mode 12) been recorded?	Yes	Go to the next step.
1		No	Record the FREEZE FRAME DATA (Mode 12) on the repair order, then go to the next step.
2	VERIFY RELATED SERVICE INFORMATION AVAILABILITY • Verify related Service Information availability. • Is any related Service Information available?	Yes	Perform repair or diagnosis according to the available Service Information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	INSPECT APP SENSOR CONNECTOR AND TERMINALS • Turn the ignition switch off. • Disconnect the APP sensor connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 9.
3		No	Go to the next step.
4	INSPECT PCM CONNECTOR AND TERMINALS • Disconnect the PCM connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 9.
4		No	Go to the next step.
5	INSPECT APP SENSOR NO.1 SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY • APP sensor and PCM connectors are disconnected. • Turn the ignition switch to the ON position (engine off). • Measure the voltage between APP sensor terminal F (wiring harness-side) and body ground. • Is there any voltage?	Yes	Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
5		No	Go to the next step.
6	INSPECT APP SENSOR NO.1 POWER SUPPLY AND SIGNAL CIRCUIT FOR SHORT TO EACH OTHER • APP sensor and PCM connectors are disconnected. • Turn the ignition switch off. • Inspect for continuity between APP sensor terminal D and F (wiring harness-side). • Is there continuity?	Yes	Repair or replace the suspected wiring harness, then go to Step 9.
6		No	Go to the next step.
7	INSPECT APP SENSOR NO.1 GROUND CIRCUIT FOR OPEN CIRCUIT • APP sensor and PCM connectors are disconnected. • Inspect for continuity between APP sensor terminal E (wiring harness-side) and PCM terminal 1AS (wiring harness-side). • Is there continuity?	Yes	Go to the next step.
7		No	Repair or replace the wiring harness for a possible open circuit, then go to Step 9.
8	INSPECT APP SENSOR NO.1 • Reconnect the APP sensor and PCM connectors. • Inspect APP sensor No.1. (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [L8, LF].) • Is there any malfunction?	Yes	Replace the APP sensor, then go to the next step. (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [L8, LF].)
8		No	Go to the next step.
9	VERIFY DTC TROUBLESHOOTING COMPLETED • Make sure to reconnect all disconnected connectors. • Clear the DTC from the PCM memory using the M-MDS. (See AFTER REPAIR PROCEDURE [L8, LF].) • Start the engine and warm it up completely. • Perform the KOEO/KOER self test. (See KOEO/KOER SELF TEST [L8, LF].) • Is the same DTC present?	Yes	Replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [L8, LF].)
9		No	Go to the next step.
10	VERIFY AFTER REPAIR PROCEDURE • Perform the “AFTER REPAIR PROCEDURE”. (See AFTER REPAIR PROCEDURE [L8, LF].) • Are any DTCs present?	Yes	Go to the applicable DTC troubleshooting. (See DTC TABLE [L8, LF].)
10		No	DTC troubleshooting completed.
