PISTON, PISTON RING, PISTON PIN CONSTRUCTION [L8, LF]
id0110a9100600
• The pistons are made of aluminum alloy, which withstands heat and is highly conductive.
• The piston skirt is coated with graphite to reduce friction.
• The offset pistons are used to reduce piston-slapping noise.
• To prevent the piston from being reassembled in the wrong direction, the front mark (←) is on the piston.
• Pistons and connecting rods cannot be disassembled because they are shrinkage fit. (Except LF MT)

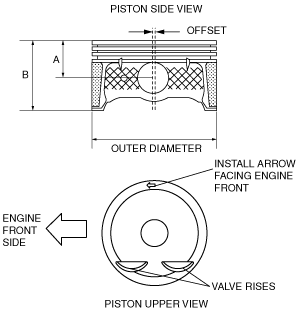

Piston Specification.
|
item
|
Specification
|
|
L8
|
LF
|
|
Outer diameter
|
mm {in}
|
82.965—82.995 {3.2664—3.2675}
|
87.465—87.495 {3.4435—3.4435}
|
|
Offset quantity
|
mm {in}
|
0.8 {0.04}
|
|
Compression height: A
|
mm {in}
|
28.5 {1.122}
|
|
Piston height: B
|
mm {in}
|
51.0 {2.0078}
|

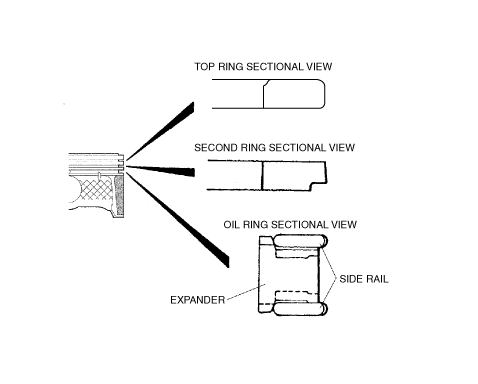

• The following piston rings have been adopted: Barrel face ring for top ring, taper under cut ring for second ring, two scuff rings and an expander for oil ring.
• The piston pin is made of chrome steel alloy, which has superior rigidity.
• The connecting rod and the piston pin are shrinkage fit, so that it cannot be disassembled. (Except LF MT)
