OIL CONTROL VALVE (OCV) CONSTRUCTION [LF]


id0110a9102445

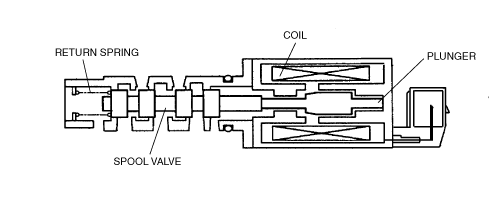

•  The oil control valve (OCV) consists of a spool valve that switches the passages for engine oil, a coil that moves the spool valve, a plunger, and a return spring.
amxzzn00000472
