ENGINE COOLANT PROTECTION INSPECTION [L8, LF]

id0112b4800400

1.  Measure the engine coolant temperature and specific gravity using a thermometer and a hydrometer.

Caution

•  Use engine coolant at a concentration that meets the environmental conditions in which the vehicle is driven, otherwise engine damage could occur.

•  The engine has aluminum parts and must be protected by an ethylene-glycol-based coolant to prevent corrosion and freezing.

•  Do not use coolants containing Alcohol, Methanol, Borate or Silicate. These coolants could damage the cooling system.

•  Use only soft (demineralized) water in the coolant mixture. Water that contains minerals will cut down on the coolant’s effectiveness.

•  Engine coolant damages paint. If engine coolant does get on a painted surface, rinse it off quickly.

Note

•  If the “FL22” mark is shown on or near the cooling system cap, use FL22 type engine coolant.

•  FL22 type engine coolant is shipped as a diluted solution. Use the solution as is when replacing coolant.

amxzzw00001961

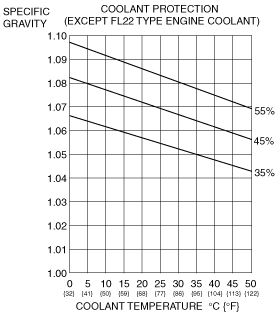

2.  Determine the engine coolant protection level by referring to the graph shown in the figure.

amxzzw00001962

•  If the engine coolant protection level is not correct, add water or engine coolant.
