FUEL PUMP UNIT CONSTRUCTION/OPERATION [L8, LF]

id0114a3101500

amxzzn00000441

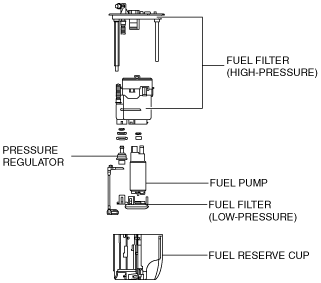

Fuel Pump Unit

• Mainly consists of a fuel filter (high-pressure), pressure regulator, fuel pump, fuel reserve cup, and fuel filter (low-pressure).

• A pressure regulator is built-in due to the adoption of a returnees fuel system.

• A hard-plastic fuel pump unit, with an integrated fuel filter (high-pressure) and fuel pump, has been adopted to simplify the fuel line.

• Fuel in the fuel reserve cup is sectioned out through the fuel filter (low-pressure) by the fuel pump, and pumped to the fuel filter (high-pressure). Return fuel is sent back to the fuel reserve cup or the fuel tank through the jet pump.

amxzzn00000244

Pressure regulator

• Built into the fuel pump unit due to adoption of a returnees fuel system.

• Mainly consists of a spring, release valve and diaphragm.

• Pressurizes fuel discharged by the fuel pump to approx. 390 kPa {3.98 kgf/cm², 56.6 psi} using the spring, diaphragm and release valve, and then pumps it to the fuel distributor.

• When fuel pressure exceeds approx. 390 kPa {3.98 kgf/cm², 56.6 psi}, the valve opens to send back fuel to the fuel reserve cup as unused fuel.
