•  Installed on the accelerator pedal.

•  The Hall element design has been adopted on the sensor.

•  A non contact type sensor has been adopted to improve durability.

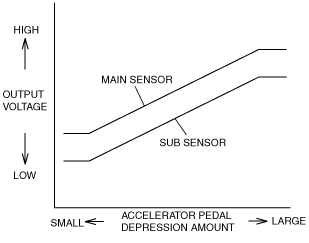

•  The APP sensor is composed of the main sensor and sub sensor, and detects the accelerator opening angle with these two sensors (main and sub).

•  The main sensor output a duty signal, and the sub sensor output a voltage signal.

•  Even if a malfunction occurs in either one of the sensors, the detection is performed with a normal sensor drive-by-wire control is maintained.

•  If both the main and sub sensors for the APP sensor malfunction, signals necessary for the drive-by-wire control are not input to the PCM and the drive-by-wire control is disabled.

•  However, even though the drive-by-wire control is disabled, the throttle valve opening angle necessary for minimum driving is maintained mechanically.
