ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [L8, LF]

id0140i7801900

1.  Remove the battery cover. (SeeBATTERY REMOVAL/INSTALLATION [L8, LF].)

2.  Disconnect the negative battery cable. (SeeBATTERY REMOVAL/INSTALLATION [L8, LF].)

3.  Drain the engine coolant from the radiator. (See ENGINE COOLANT REPLACEMENT [L8, LF]

4.  Remove the service hole cover.

(1)  Remove the suspension tower bar (joint), (right side) and (left side). (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION.)

(2)  Remove the wiper arm. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(3)  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

(4)  Remove the side cowl grille. (See SIDE COWL GRILLE REMOVAL/INSTALLATION.)

(5)  Move the cooler pipe No.3 and heater pipe slightly out of the way. (L.H.D.)

e5u113zw5016

(6)  Remove the service hole cover.

amxzzw00000835

5.  Disconnect the heater hose and move the heater hose slightly out of the way. (L.H.D.)

amxzzw00002172

6.  Disconnect the ECT sensor connector.

7.  Remove the ECT sensor.

e5u140zw4853

Note

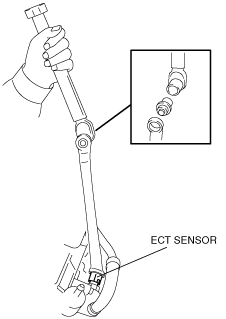

•  Put the double nut together and install the torque wrench. (See SERVICE CAUTIONS.)

8.  Install in the reverse order of removal.

e5u140zw4854
