DLC-2 CONSTRUCTION

id020200100700

•  A DLC-2 connector conforming to ISO (International Organization for Standardization) standards has been added.

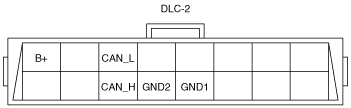

•  Shape and terminal arrangement as stipulated by the ISO 15031-3 (SAE J1962) international standard has been adopted for this connector. The connector has a 16-pin construction that includes the CAN_H, CAN_L, GND1, GND2 and B+ terminals.
amxzzn00000117

Terminal

Function
CAN_L
Serial communication Lo terminal
CAN_H
Serial communication Hi terminal
GND1
Body ground terminal
GND2
Serial communication ground terminal
B+
Battery power supply terminal
