REAR STABILIZER REMOVAL/INSTALLATION

id021400800500

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

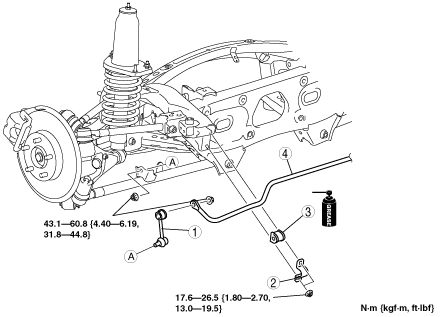

e5u214zw5011

1	Stabilizer control link (See Stabilizer Control Link Installation Note.)
2	Stabilizer bracket
3	Bushing
4	Rear stabilizer (See Rear Stabilizer Installation Note.)

Rear Stabilizer Installation Note

1.  Install the rear stabilizer so that the identification mark is on the right side of the vehicle.

e5u214zw5015

Stabilizer Control Link Installation Note

1.  Install the stabilizer control link in the proper angle as shown in the figure.

chu0214w033

Caution

•  Be sure to install the stabilizer control link in the proper position. If it is not installed properly, the stabilizer control link may interfere with peripheral components when driving, causing damage to each other.

2.  Place the vehicle on the ground and verify that the stabilizer control link is installed in the angle shown in the figure.

chu0214w034
