Item
Specification
Transmission type
L8/5MT
LF/5MT
LF/6MT
LF/6EAT
Front axle
Bearing type
Angular ball bearing
Rear axle
Bearing type
Angular ball bearing
Rear drive shaft
Joint type
Wheel side
Bell joint
Differential side
Tripod joint
Shaft diameter
(mm {in})
36.0 {1.42} (Maximum diameter)
26.6 {1.05} (Minimum diameter)
Rear differential
Reduction gear type
Hypoid gear
Differential gear type
Straight bevel gear
Ring gear size
(inch)
7.35
Reduction ratio
3.909
4.100
3.727
4.100
Number of gear teeth
Drive pinion
11
10
11
10
Ring gear
43
41
Differential oil
Type
Grade
API service GL-5
Viscosity
SAE 90
Capacity
(approx. quantity)
(L {US qt, Imp qt})
0.6—0.8 {0.63—0.85, 0.53—0.70}

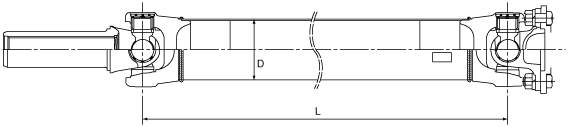

Propeller shaft
Length
(mm {in})
L
736 {29.0}
780 {30.7}
Diameter
(mm {in})
D
65 {2.6}
