REAR DIFFERENTIAL DISASSEMBLY

id031400800500

Warning

•  The engine stand is equipped with a self-lock mechanism, however, if the rear differential is tilted, the self-lock mechanism could become inoperative. If the rear differential unexpectedly rotates, it could cause injury, therefore do not maintain the rear differential tilted. When turning the rear differential, grasp the rotation handle firmly.

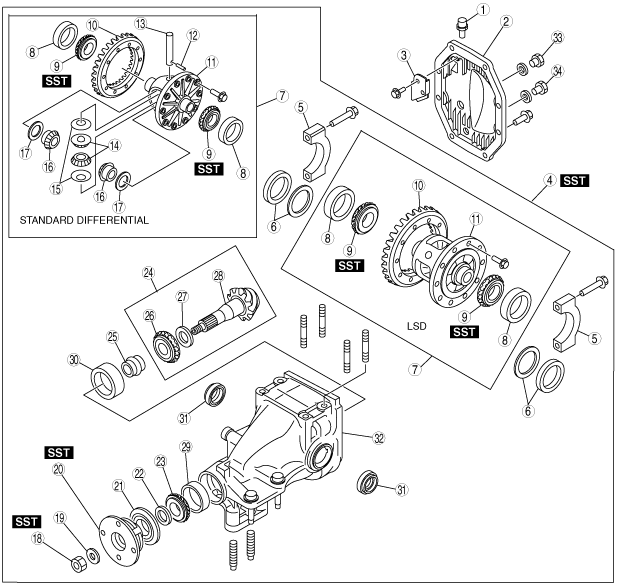

1.  Disassemble in the order indicated in the table.

amxzzw00001365

1	Breather plug
2	Rear cover
3	Baffle plate
4	Differential component (See Differential Component Disassembly Note.)
5	Bearing cap (See Bearing Cap Disassembly Note.)
6	Adjustment shim (See Adjustment Shim, Side Bearing Outer Race Disassembly Note.)
7	Differential gear case component
8	Side bearing outer race (See Adjustment Shim, Side Bearing Outer Race Disassembly Note.)
9	Side bearing (See Side Bearing Disassembly Note.)
10	Ring gear
11	Gear case
12	Roll pin (See Roll Pin Disassembly Note.)
13	Pinion shaft
14	Pinion gear
15	Thrust washer
16	Side gear
17	Washer
18	Locknut (See Locknut Disassembly Note.)
19	Washer
20	Companion flange (See Companion Flange Disassembly Note.)
21	Oil seal (companion flange)
22	Spacer
23	Front bearing
24	Drive pinion component (See Drive Pinion Component Disassembly Note.)
25	Collapsible spacer
26	Rear bearing (See Rear Bearing Disassembly Note.)
27	Spacer
28	Drive pinion
29	Front bearing outer race (See Front Bearing Outer Race, Rear Bearing Outer Race Disassembly Note.)
30	Rear bearing outer race (See Front Bearing Outer Race, Rear Bearing Outer Race Disassembly Note.)
31	Oil seal (side gear)
32	Differential carrier
33	Oil-fill plug
34	Drain plug

Differential Component Disassembly Note

1.  Install the differential component to the SSTs.

amxzzw00001366

Bearing Cap Disassembly Note

1.  Mark the bearing cap and differential carrier for proper installation.

amxzzw00002387

Adjustment Shim, Side Bearing Outer Race Disassembly Note

1.  Remove the adjustment shim using a flathead screwdriver.

amxzzw00001367

2.  Put left and right identification marks on the removed adjustment shims and side bearing outer races.

amxzzw00001368

Side Bearing Disassembly Note

1.  Remove the side bearing using the SST.

amxzzw00001369

2.  Put left and right identification marks on the removed side bearings.

Roll Pin Disassembly Note

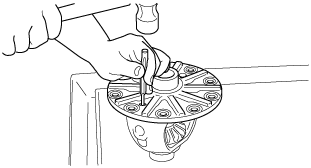

1.  Tap the roll pin out from the direction shown in the figure using a pin punch.

amxzzw00001370

Locknut Disassembly Note

1.  Remove the locknut while fixing the companion flange using the SST.

amxzzw00001371

Companion Flange Disassembly Note

1.  Remove the companion flange using the SST.

amxzzw00001372

Drive Pinion Component Disassembly Note

1.  Install the removed locknut to the drive pinion top to prevent damage to the thread.

amxzzw00001373

2.  Remove the drive pinion component by tapping the locknut lightly using a plastic hammer.

3.  Remove the locknut installed in Step 1.

Rear Bearing Disassembly Note

Caution

•  The drive pinion could be damaged if it falls off. Support the drive pinion with your hand when removing the rear bearing.

1.  Remove the rear bearing using the SST and a press.

amxzzw00001374

Front Bearing Outer Race, Rear Bearing Outer Race Disassembly Note

1.  Remove the bearing outer race by lightly tapping the edge of the bearing outer race using a flathead screwdriver.

amxzzw00001375
