DTC C1233, C1234, C1235, C1236 [DYNAMIC STABILITY CONTROL (DSC)]

id0402b2805800

DTC
C1233
C1234
C1235
C1236
LF ABS wheel-speed sensor system
RF ABS wheel-speed sensor system
RR ABS wheel-speed sensor system
LR ABS wheel-speed sensor system
DETECTION CONDITION
•  Excessively slow wheel speed is detected when the vehicle speed is 12 km/h {7.5 mph}or more first time after the system is activated or the vehicle is started.
•  While the vehicle is driven at a speed of 20 km/h {13 mph}or more, difference in each wheel speed is continuously not within the specification.
POSSIBLE CAUSE

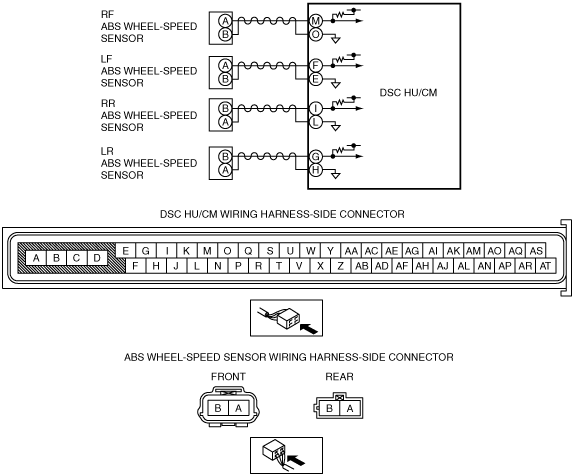

•  Short to ground in the wiring harness between the following DSC HU/CM terminal and the ABS wheel-speed sensor terminal:
―  DSC HU/CM terminal M—RF ABS wheel-speed sensor terminal A
―  DSC HU/CM terminal O—RF ABS wheel-speed sensor terminal B
―  DSC HU/CM terminal F—LF ABS wheel-speed sensor terminal A
―  DSC HU/CM terminal E—LF ABS wheel-speed sensor terminal B
―  DSC HU/CM terminal I—RR ABS wheel-speed sensor terminal B
―  DSC HU/CM terminal L—RR ABS wheel-speed sensor terminal A
―  DSC HU/CM terminal G—LR ABS wheel-speed sensor terminal B
―  DSC HU/CM terminal H—LR ABS wheel-speed sensor terminal A
•  ABS wheel-speed sensor malfunction
•  Poor connection at connectors (female terminal)

Diagnostic procedure

STEP

INSPECTION

ACTION
1
INSPECT PID TO VERIFY THAT WHEEL SPEED-SIGNALS ARE TRANSMITTED FROM ABS WHEEL- SPEED SENSOR USING M-MDS
•  Turn the ignition switch to the LOCK position.
•  Connect the M-MDS to the DLC-2.
•  Select the following PIDs using the M-MDS:
―  LF_WSPD
―  LR_WSPD
―  RF_WSPD
―  RR_WSPD
•  Drive the vehicle.
•  Verify that the wheel speed-signals are transmitted from each ABS wheel-speed sensor.
•  Are the wheel-speed signals transmitted?
Yes
Go to Step 3.
No
Go to the next step.
2
INSPECT A SHORT TO GROUND IN THE WIRING HARNESS BETWEEN THE DSC HU/CM AND THE ABS WHEEL-SPEED SENSOR
•  Turn the ignition switch to the LOCK position.
•  Disconnect the DSC HU/CM connector and the ABS wheel-speed sensor connector.
•  Inspect for a short to ground in the wiring harness between the following ABS wheel-speed sensor connectors on the vehicle wiring harness-side and DSC HU/CM connectors.
―  RF ABS wheel-speed sensor (+): M—A
―  RF ABS wheel-speed sensor (–): O—B
―  LF ABS wheel-speed sensor (+): F—A
―  LF ABS wheel-speed sensor (–): E—B
―  RR ABS wheel-speed sensor (+): I—B
―  RR ABS wheel-speed sensor (–): L—A
―  LR ABS wheel-speed sensor (+): G—B
―  LR ABS wheel-speed sensor (–): H—A
•  Is there continuity?
Yes
Repair or replace the wiring harness, then go to the next step.
No
Replace the ABS wheel-speed sensor, then go to the next step.
(See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)
(See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)
3
VERIFY THAT THE SAME DTC IS NOT PRESENT
•  Clear the DTCs from the memory.
•  Start the engine and drive the vehicle at 10 km/h {6.2 mph} or more.
•  Are the same DTCs present?
Yes
Repeat the inspection from Step 1.
If the malfunction recurs, replace the DSC HU/CM, then go to the next step.
(See DSC HU/CM REMOVAL/INSTALLATION.)
No
Go to the next step.
4
VERIFY AFTER REPAIR PROCEDURE
•  Are any other DTCs present?
Yes
Go to the applicable DTC inspection.
(See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)].)
No
DTC troubleshooting completed.
