SYMPTOM TROUBLESHOOTING [ABS]

id0403a5804200

•  Verify the symptoms, and perform troubleshooting according to the appropriate number.

No.

Symptom
1
Neither ABS warning light nor brake system warning light illuminate when ignition switch turned to ON position
2
ABS warning light does not illuminate when ignition switch turned to ON position
3
Brake system warning light does not illuminate when the ignition switch is turned to the ON position
4
Both ABS warning light and brake system warning light stay on 4 s or more when the ignition switch is turned to the ON position
5
ABS warning light stays on 4 s or more when the ignition switch turned to ON position
6
Brake system warning light stays on 4 s or more when ignition switch turned to ON position
(Parking brake is released)

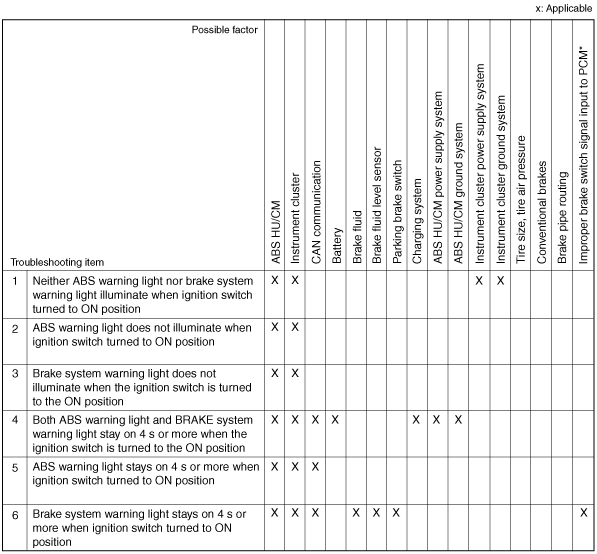

amxzzw00002584
*  :Vehicles without malfunction warning light. (Applied VIN (assumed): NC18**215550—, NC18**250831—, NC30**202488—, NCA8**251024—)
