SYMPTOM TROUBLESHOOTING [DYNAMIC STABILITY CONTROL (DSC)]

id0403b2800400

• Verify the symptoms, and perform troubleshooting according to the appropriate number.

No.

Symptom

1

Any of the following lights do not illuminate when ignition switch turned to ON position:

•  ABS warning light

•  Brake system warning light

•  DSC indicator light

•  DSC OFF light

2

Any of the following lights remain on:

•  ABS warning light

•  Brake system warning light

•  DSC indicator light

•  DSC OFF light

3

There is a malfunction in the system even though ABS warning light, brake system warning light, DSC indicator light and DSC OFF light do not illuminate

4

ABS or TCS^*1 operates frequently

TCS does not work correctly

5

DSC^*2 operates frequently

DSC does not work correctly

No.	Symptom
1	Any of the following lights do not illuminate when ignition switch turned to ON position: • ABS warning light • Brake system warning light • DSC indicator light • DSC OFF light
2	Any of the following lights remain on: • ABS warning light • Brake system warning light • DSC indicator light • DSC OFF light
3	There is a malfunction in the system even though ABS warning light, brake system warning light, DSC indicator light and DSC OFF light do not illuminate
4	ABS or TCS^*1 operates frequently
TCS does not work correctly
5	DSC^*2 operates frequently
DSC does not work correctly

*1 : DSC system function contains traction control function, DSC indicator light goes on and off while DSC is operating

*2 : DSC indicator light goes on and off while DSC is operating

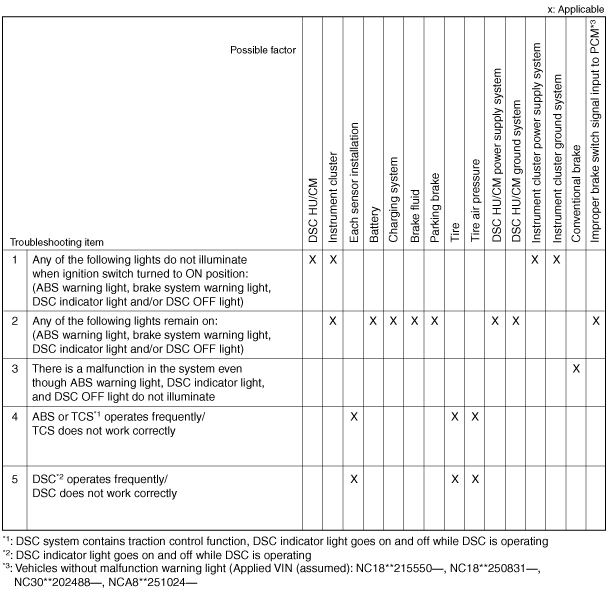

amxzzw00002586
