CALIPER (FRONT) DISASSEMBLY/ASSEMBLY

id041100801000

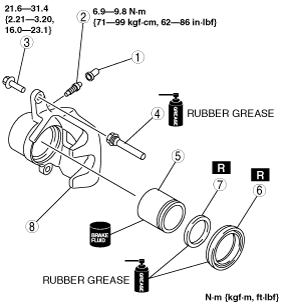

1.  Disassemble in the order indicated in the table.

amxzzw00000242

1	Bleeder cap
2	Bleeder screw
3	Bolt
4	Sleeve
5	Piston (See Piston Disassembly Note.)
6	Dust seal
7	Piston seal
8	Caliper body

2.  Assemble in the reverse order of disassembly.

Piston Disassembly Note

Caution

•  The piston could be damaged if blown out with great force. Blow the compressed air slowly to prevent the piston from suddenly popping out.

1.  Insert a piece of wood in the caliper as shown in the figure, and then blow compressed air through the bleeder screw hole to remove the piston from the caliper body.

amxzzw00000243
