BRAKE HOSE (REAR) REMOVAL/INSTALLATION

id041100805100

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See AIR BLEEDING.)

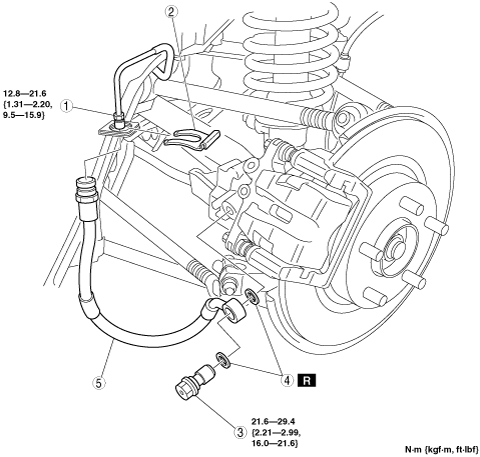

amxzzw00002233

1	Brake pipe
2	Clip
3	Connector bolt
4	Gasket
5	Brake hose
