CLUTCH RELEASE CYLINDER DISASSEMBLY/ASSEMBLY

id051000802200

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

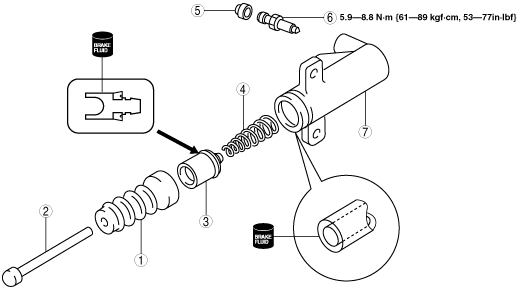

amxzzw00000471

1	Boot
2	Push rod
3	Piston, piston cup component
4	Return spring
5	Bleeder cap
6	Bleeder screw
7	Clutch release cylinder body
