OIL SEAL (EXTENSION HOUSING) REPLACEMENT [SJ6A-EL]

id051311710000

1.  Remove the battery cover.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3.  Clean the transmission exterior thoroughly using a steam cleaner or cleaning solvent.

4.  Drain the ATF. (See AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT [SJ6A-EL].)

5.  Remove the following parts.

(1)  Tunnel member component

(2)  Middle pipe (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L8, LF].)

(3)  Power plant frame (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL].)

(4)  Propeller shaft (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

Caution

•  Do not to damage the extension dust deflector.

•  Do not to damage the extension housing.

6.  Using a plastic hammer and slab of wood, tap the extension dust deflector to remove it.

ar8jjw00001011

7.  Using a tape-wrapped flathead screwdriver, remove the extension housing shroud.

ar8jjw00001012

8.  Using a tape-wrapped flathead screwdriver, remove the oil seal.

ar8jjw00001013

9.  Using the SST and a hammer, install the new oil seal to the extension housing.

e5u513zw5044

10.  Coat the oil seal lip with grease.

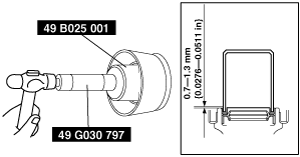

11.  Using the SST and a hammer, install the new extension housing shroud to the extension housing.

e5u513zw5043

12.  Using a hammer and slab of wood, install the extension dust deflector to the extension housing.

13.  Install the following parts.

(1)  Propeller shaft (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

(2)  Power plant frame (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL].)

(3)  Middle pipe (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L8, LF].)

(4)  Tunnel member component

14.  Add ATF and, with the engine idling, inspect the ATF level and for leakage. (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT [SJ6A-EL].)

15.  Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

16.  Install the battery cover.
