STEERING GEAR AND LINKAGE CONSTRUCTION


id061400100600

•  A size and weight reduced rack and pinion system steering gear has been adopted.
•  Heightened support rigidity has been achieved due to the integration of the steering gear mounts (two locations) and gear housing, improving response and steering stability.

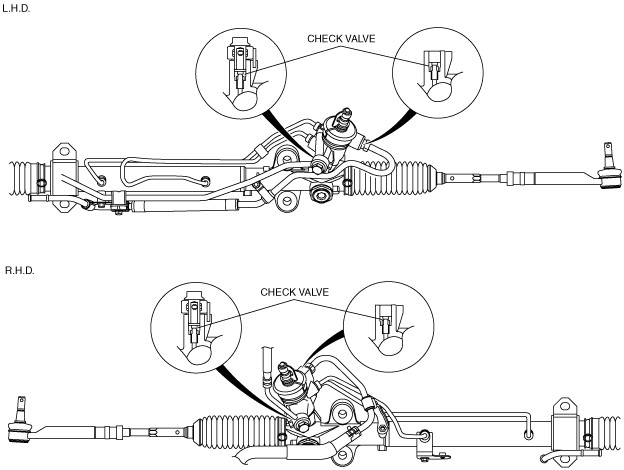

•  A check valve equipped to the power steering fluid intake port prevents the power steering fluid from flowing back as a result of road surface resistance. Due to this, kickback from the road surface is reduced.
d5e614zt6002
