STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION

id061400803600

Warning

•  Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SYSTEM WARNINGS before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

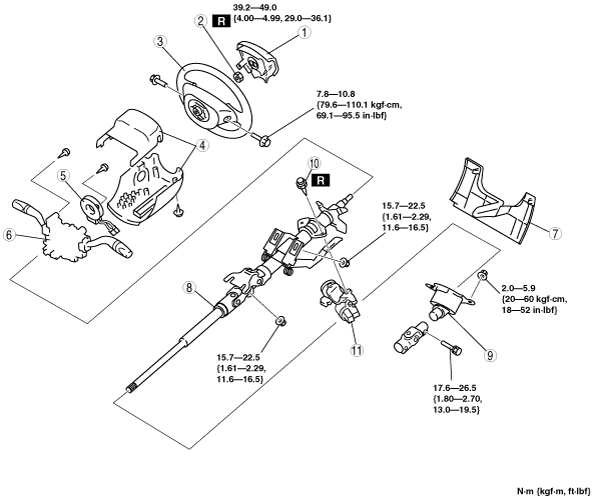

amxzzw00001473

1	Air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
2	Locknut
3	Steering wheel (See Steering Wheel Removal Note.) (See Steering Wheel Installation Note.)
4	Column cover
5	Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.)
6	Combination switch
7	Lower panel
8	Steering shaft (See Steering Shaft Installation Note.)
9	Dust cover
10	Steering lock mounting bolts (See Steering Lock Mounting Bolts Removal Note.) (See Steering Lock Mounting Bolts Installation Note.)
11	Steering lock component

Steering Wheel Removal Note

Caution

•  Do not try to remove the steering wheel by hitting the shaft with a hammer. The column will collapse.

1.  Set the vehicle in the straight-ahead position.

2.  Remove the steering wheel using a suitable puller.

Steering Lock Mounting Bolts Removal Note

1.  Make a groove in the heads of the steering lock mounting bolts using a chisel and a hammer.

amxzzw00001474

2.  Remove the bolts using a screwdriver.

3.  Disassemble the steering lock component.

Steering Lock Mounting Bolts Installation Note

1.  Assemble the steering lock component to the steering shaft.

2.  Verify that the lock operates correctly.

3.  Install new steering lock mounting bolts.

4.  Tighten the bolts until the heads break off.

amxzzw00001475

Steering Shaft Installation Note

Caution

•  Do not apply a shock in the axial direction of the shaft.

1.  Lock the tilt lever.

amxzzw00001476

2.  Tighten nut A.

3.  Tighten nut B.

4.  Tighten bolt C.

Steering Wheel Installation Note

1.  Make sure the wheels in the straight-ahead position, and install the steering wheel.
