DTC INSPECTION
id070200800200
1. Switch the ignition to ON, then press and hold the A/C switch for 5 s or more within 10 s.
2. Turn the fan switch to the OFF position.

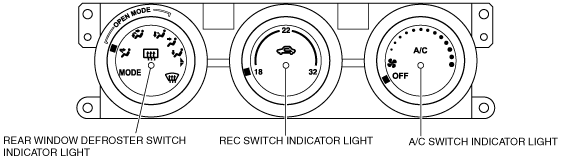

3. Verify that all the indicator lights of the climate control unit illuminate.
amxzzw00001127
|
4. Press the recirculate switch or switch the ignition to off to finish.
Malfunction detection function
1. Expose the solar radiation sensor to natural sunlight.
2. Switch the ignition to ON, then press and hold the A/C switch for 5 s or more within 10 s.
3. Turn the fan switch to the AUTO position.
4. Turn and adjust the mode dial to the inspection item.
|
INSPECTION ITEM |
MODE DIAL POSITION |
A/C SWITCH INDICATOR |
|
|---|---|---|---|
|
OK |
NG |
||
|
ALL SENSOR
|
AUTO
|
ON
|
OFF
|
|
AMBIENT TEMPERATURE SENSOR
|
OPEN/VENT
|
ON
|
OFF
|
|
CABIN TEMPERATURE SENSOR
|
BI-LEVEL
|
ON
|
OFF
|
|
SOLAR RADIATION SENSOR
|
OPEN/HEAT
|
ON
|
OFF
|
|
EVAPORATOR TEMPERATURE SENSOR
|
VENT
|
ON
|
OFF
|
|
AIR MIX ACTUATOR
|
HEAT
|
ON
|
OFF
|
5. Press the recirculate switch or switch the ignition to off to finish.
Door position check function
1. Switch the ignition to ON, then press and hold the A/C switch for 5 s or more within 10 s.
2. Turn the fan switch to the LO position.
3. Verify that the indicator light of the climate control unit illuminates.
|
MALFUNCTION |
INDICATOR PARTS |
|---|---|
|
ALL OK
|
A/C SWITCH
|
|
AIRFLOW MODE ACTUATOR
|
REC SWITCH
|
|
AIR INTAKE ACTUATOR
|
REAR WINDOW DEFROSTER SWITCH
|
4. Press the recirculate switch or switch the ignition to off to finish.
Operation check function
1. Switch the ignition to ON, then press and hold the A/C switch for 5 s or more within 10 s.
2. Turn the fan switch to a position other than OFF, AUTO, or LO positions.
3. Verify the operation of each output related part by switching the mode dial positions while referring to the operation check table.
|
|
MODE DIAL POSITION |
|||||||
|---|---|---|---|---|---|---|---|---|
|
AUTO |
OPEN VENT |
BI-LEVEL |
OPEN/HEAT |
VENT |
HEAT |
DEF/HEAT |
DEFROSTER |
|
|
MODE DOOR
|
OPEN
VENT
|
OPEN
VENT
|
BI-LEVEL
|
OPEN
VENT
|
VENT
|
HEAT
|
DEF/HEAT
|
DEFROSTER
|
|
AIR INTAKE DOOR
|
REC
|
REC
|
FRESH
|
REC
|
REC
|
FRESH
|
FRESH
|
FRESH
|
|
AIR MIX DOOR
|
MAX COLD
|
MAX COLD
|
MAX HOT
|
MAX COLD
|
MAX COLD
|
MAX HOT
|
MAX HOT
|
MAX HOT
|
|
BLOWER MORTER
|
4.5±2 V
|
4.5±2 V
|
10.5± 2 V
|
4.5± 2 V
|
10.5± 2 V
|
8.5± 2 V
|
8.5±2 V
|
VB
|
|
A/C COMPRESSOR
|
OFF
|
ON
|
OFF
|
ON
|
OFF
|
ON
|
ON
|
ON
|
4. Press the recirculate switch or switch the ignition to off to finish.
