A/C UNIT CONSTRUCTION/OPERATION
id071100100400
Construction

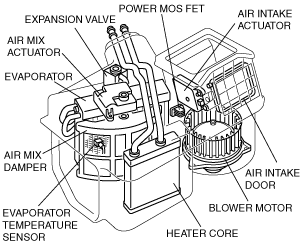

• An A/C unit with integrated cooling and heater units has been adopted.
-
― Evaporator
― Heater core
― Expansion valve
― Air mix damper
― Air intake door
― Evaporator temperature sensor
― Power MOS FET
― Air mix actuator
― Air intake actuator
― Blower motor

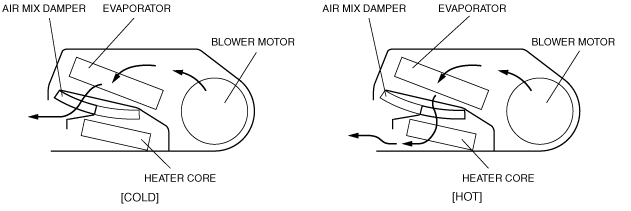

Air Mix Damper Operation
• The air mix damper, installed in the A/C unit, controls HOT or COLD positions, depending on the position of the temperature control dial. As a result, the airflow temperature is controlled.
