DTC B1871 [AIR BAG SYSTEM]


id0802a0810100


System Malfunction Location

DTC

System Malfunction Location

M-MDS display

B1871
Passenger air bag deactivation (PAD) switch system circuit disabled


Detection Condition

Warning
•  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
•  Malfunction in wiring harness between PAD switch and SAS control module
•  Malfunction in PAD switch circuit

Possible Causes

•  PAD switch connector malfunction
•  PAD switch assembly incorrect
•  Open or short circuit in wiring harness between PAD switch and SAS control module
•  Open circuit in wiring harness between PAD switch and body ground
•  SAS control module malfunction

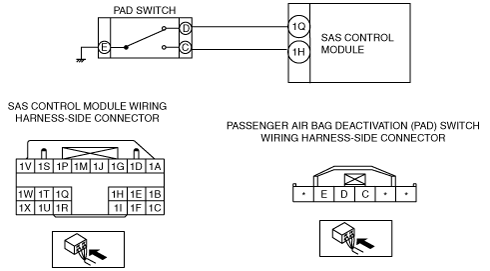

System Wiring Diagram

amxzzw00001772

Diagnostic Procedure

STEP

INSPECTION

ACTION

1
INSPECT PAD SWITCH CONNECTOR
Warning
•  Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components.
•  Turn the ignition switch to the LOCK position.
•  Remove the battery cover.
•  Disconnect the negative battery cable and wait for 1 min or more. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
•  Disconnect the PAD switch connector.
•  Inspect the PAD switch connection. (Corrosion, damage, and disconnected pins)
•  Is there any malfunction of the PAD switch connector?
Yes
Replace the PAD switch wiring harness.
No
Go to the next step.
2
INSPECT PAD SWITCH
•  Inspect the PAD switch.
•  Is the PAD switch normal?
Yes
Go to the next step.
No
Replace the PAD switch.
3
INSPECT WIRING HARNESS BETWEEN PAD SWITCH AND SAS CONTROL MODULE
•  Remove the column cover.
•  Disconnect the clock spring connector.
•  Remove the glove compartment.
•  Disconnect the passenger-side air bag module connector. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
•  Disconnect the driver and passenger-side seat connectors.
•  Remove the back trim.
•  Remove the driver and passenger-side pre-tensioner seat belt connectors.
•  Remove the console panel.
•  Disconnect the SAS control module connectors.
•  Inspect the wiring harness between SAS control module terminal 1Q and PAD switch terminal D, SAS control module terminal 1H and PAD switch terminal C for the following:
―  Short circuit between terminals
―  Short to body ground
―  Open circuit
Note
•  Inspect for continuity while shaking the wiring harness between the SAS control module and PAD switch.
•  Is the wiring harness normal?
Yes
Go to the next step.
No
Replace the wiring harness between the SAS control module and the PAD switch.
4
INSPECT WIRING HARNESS BETWEEN PAD SWITCH AND BODY GROUND
•  Inspect the wiring harness between PAD switch terminal E and body ground for the following:
―  Open circuit
Note
•  Inspect for continuity while shaking the wiring harness between the SAS control module and PAD switch.
•  Is the wiring harness normal?
Yes
Go to the next step.
No
Replace the wiring harness between the PAD switch and body ground.
5
PERFORM SAS CONTROL MODULE DTC INSPECTION
•  Turn the ignition switch to the LOCK position.
•  Disconnect the negative battery cable and wait for 1min or more.
•  Reconnect all disconnected connectors.
•  Connect the negative battery cable.
•  Turn the ignition switch to the ON position.
•  Clear the DTC for the SAS control module using the M-MDS.
•  Perform the DTC inspection for the SAS control module using the M-MDS.
•  Are the same DTCs present?
Yes
Replace the SAS control module.
No
DTC troubleshooting completed.
