DTC B2840 [INSTRUMENT CLUSTER]
id0902e8165400
DTC B2840 |
Ambient temperature sensor circuit malfunction |
---|---|
DETECTION CONDITION
|
Open or short circuit in wiring harness between ambient temperature sensor and instrument cluster
|
POSSIBLE CAUSES
|
• Open or short circuit in wiring harness between ambient temperature sensor and instrument cluster
• Ambient temperature sensor malfunction
• Instrument cluster malfunction
|

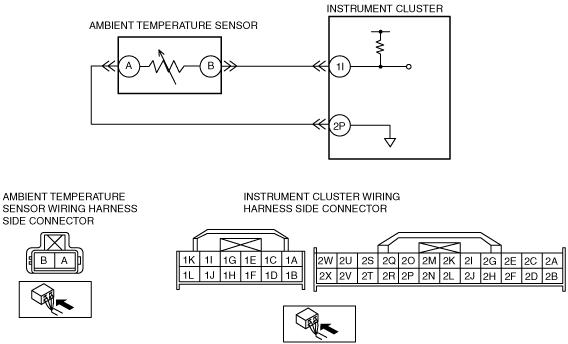

System Wiring Diagram
amxzzw00002302
|
Diagnostic Procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
INSPECT AMBIENT TEMPERATURE SENSOR CONNECTOR CONDITION
• Turn the ignition switch to the LOCK position.
• Disconnect the ambient temperature sensor connector.
• Inspect the connector and terminals (corrosion, damage, pin disconnection).
• Are the connector and terminals normal?
|
Yes
|
Go to the next step.
|
No
|
Repair/replace the connector or terminal.
After repair procedure, go to Step 9.
|
||
2
|
INSPECT AMBIENT TEMPERATURE SENSOR
• Inspect the ambient temperature sensor.
• Is the ambient temperature sensor normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the ambient temperature sensor.
After replacement, go to Step 9.
|
||
3
|
INSPECT AMBIENT TEMPERATURE SENSOR CIRCUIT FOR SHORT TO GROUND
• Inspect the wiring harness for continuity between ambient temperature sensor connector terminal B and body ground.
• Is there continuity?
|
Yes
|
Repair/replace the malfunctioning vehicle wiring harness.
After repair procedure, go to Step 9.
|
No
|
Go to the next step.
|
||
4
|
INSPECT AMBIENT TEMPERATURE SENSOR CIRCUIT FOR OPEN CIRCUIT
• Turn the ignition switch to the ON position.
• Measure the voltage at ambient temperature sensor connector terminal B.
• Is the voltage 5 V?
|
Yes
|
Go to Step 6.
|
No
|
Go to the next step.
|
||
5
|
INSPECT AMBIENT TEMPERATURE SENSOR CIRCUIT FOR OPEN CIRCUIT
• Measure the voltage at instrument cluster terminal 1I.
• Is the voltage 5 V?
|
Yes
|
Repair/replace the malfunctioning vehicle wiring harness.
After repair procedure, go to Step 9.
|
No
|
Go to Step 8.
|
||
6
|
INSPECT AMBIENT TEMPERATURE SENSOR CIRCUIT FOR OPEN CIRCUIT
• Turn the ignition switch to the LOCK position.
• Inspect the wiring harness for continuity between ambient temperature sensor connector terminal A and body ground.
• Is there continuity?
|
Yes
|
Go to Step 9.
|
No
|
Go to the next step.
|
||
7
|
INSPECT AMBIENT TEMPERATURE SENSOR CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between instrument cluster terminal 2P and body ground.
• Is there continuity?
|
Yes
|
Repair/replace the malfunctioning vehicle wiring harness.
After repair procedure, go to Step 9.
|
No
|
Go to the next step.
|
||
8
|
VERIFY INSTRUMENT CLUSTER CONNECTOR CONDITION
• Disconnect the instrument cluster connector.
• Inspect the connector and terminals (corrosion, damage, pin disconnection).
• Are the connector and terminals normal?
|
Yes
|
Go to the next step.
|
No
|
Repair/replace the connector or terminal.
After repair procedure, go to the next step.
|
||
9
|
VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN
• Reconnect the disconnected connectors.
• Clear the DTC.
• VERIFY DTCs.
• Is DTC B2840 output?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction does not recur, go to the next step.
• If the malfunction recurs, replace the instrument cluster.
|
No
|
Go to the next step.
|
||
10
|
VERIFY THAT NO OTHER DTCs ARE PRESENT
• Verify other DTC displayed.
• Are any other DTCs output?
|
Yes
|
Perform the corresponding DTC inspection.
|
No
|
DTC troubleshooting completed.
|
