FOREWORD [RADIO]

id0903e3802700

Note

•  In case location, time, and broadcasting station etc. can be specified through interview to customer, possibility that signal environment causes problem is high.

•  Perform confirmation of symptom and evaluation under conditions that customer reported (location, time, broadcasting station etc.). If not possible, perform it under equivalent conditions.

•  Before inspection or repair, record the broadcasting stations that customer preset and reset them accordingly after the inspection or repair. Adjust the clock too.

Troubleshooting Index

No.	Symptom	Possible DTC
1	NO.1 NO RADIO RECEPTION (AM/FM)/NO OR LOW VOLUME [RADIO]	09:Er20, 09:Er22
2	NO.2 NOISE FROM RADIO (AM ONLY) [RADIO]	09:Er22
3	NO.3 NOISE FROM RADIO (FM ONLY) [RADIO]	09:Er22
4	NO.4 CANNOT TUNE (SEEK DOES NOT STOP) [RADIO]	09:Er20, 09:Er22
5	NO.5 CANNOT PRESET (PRESET FUNCTION DOES NOT OPERATE) [RADIO]	21:Er19
6	NO.6 RECEPTION FREQUENCY OF RADIO SLIPS [RADIO]	09:Er22

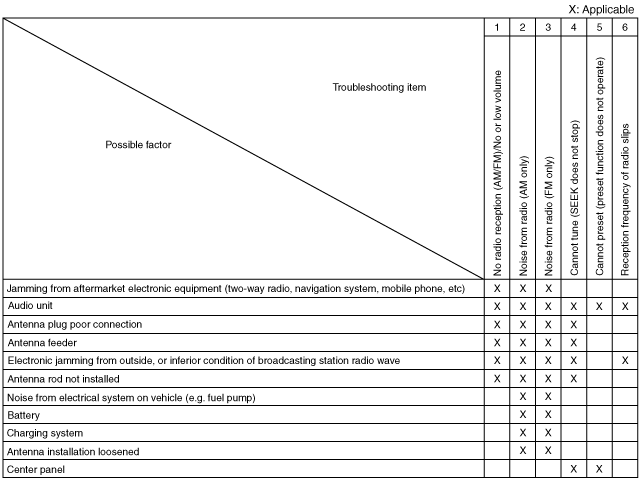

Quick Diagnostic Chart (Radio)

ar8uuw00000403
