FRONT FENDER PANEL REMOVAL/INSTALLATION

id091000405900

1.  Disconnect the negative battery cable. (SeeBATTERY REMOVAL/INSTALLATION [L8, LF].)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

4.  Remove the side step molding. (SeeSIDE STEP MOLDING REMOVAL.) (SeeSIDE STEP MOLDING INSTALLATION.)

5.  Remove in the order indicated in the table.

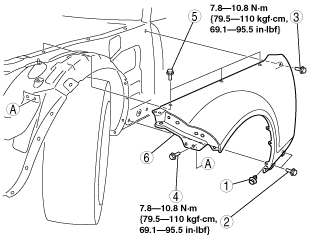

e5u910zw1023

1	Fastener
2	Bolt A
3	Bolt B
4	Bolt C
5	Bolt D
6	Front fender panel

6.  Install in the reverse order of removal.
