REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION

id091000800900

1.  Disconnect the negative battery cable. (SeeBATTERY REMOVAL/INSTALLATION [L8, LF].)

2.  Remove the following parts:

(1)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2)  Partition board (See PARTITION BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Rear combination lights (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(5)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

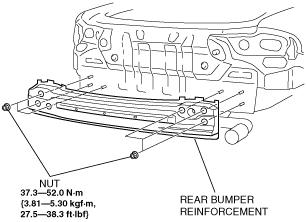

3.  Remove the nuts, then remove the rear bumper reinforcement.

e5u910zw1022

4.  Install in the reverse order of removal.
