TRUNK LID ADJUSTMENT

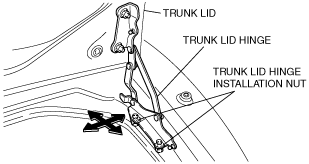

2. Loosen the trunk lid hinge installation nuts or the trunk lid lock striker installation screws, and adjust the trunk lid.

Standard clearance

a: 4.5—7.5 mm {0.18—0.29 in} (Except Power Retractable Hardtop)

a: 5.5—8.5 mm {0.22—0.33 in} (Power Retractable Hardtop)

b: 5.0—9.0 mm {0.20—0.35 in}

c: 3.0—6.0 mm {0.12—0.23 in} (Except Power Retractable Hardtop)

c: 4.0—8.0 mm {0.16—0.31 in} (Power Retractable Hardtop)

d: 3.0—5.0 mm {0.12—0.19 in}
