SECURITY LIGHT CONSTRUCTION/OPERATION

id091400598900

Construction

• Allows visual confirmation of immobilizer system operation.

• If any malfunction is detected in the immobilizer system, the malfunction location can be verified by the security light flashing pattern.

Note

• If there is security light system malfunction, DTCs may not be properly displayed. Always use the Mazda Modular Diagnostic System (M-MDS) to verify DTCs.

Operation

• When the immobilizer system is operating, the security lights flash repeatedly 0.1 s every 2 s.

amxzzn00000141

• When the immobilizer system is released normally, the security light illuminates for 3 s and then goes off when the ignition switch is turned to the ON position.

amxzzn00000142

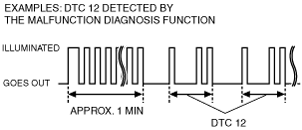

• If the immobilizer system is not released normally (malfunction detected by the malfunction diagnosis function), the security light displays a DTC. If this occurs, the security lights flash or illuminates for 1 min and then displays the DTC when the ignition switch is turned to the ON position.

― DTC 16 and lower: Flashes

― DTC 21 and higher: Illuminated

amxzzn00000143

Note

• The security lights flash to display the DTC 10 times.

• If multiple DTCs that can be confirmed with the security light are detected, only the DTC with the lowest number of those detected will be displayed by the security light.
