ROOF LINK LOCK REMOVAL/INSTALLATION

id091600721700

1.  Fully open the deck panel.

2.  Remove the rear defroster harness from the roof link lock (LH). (See REAR WINDOW GLASS REMOVAL/INSTALLATION [POWER RETRACTABLE HARDTOP])

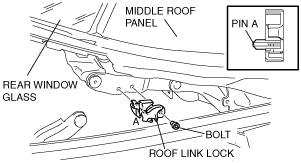

3.  Remove the bolt.

amxzzw00002100

4.  Remove the pin A.

5.  Remove the roof link lock.

6.  Install in the reverse order of removal.
