DECK PANEL MOTOR REMOVAL/INSTALLATION

id091600811300

Caution

•  If the deck panel does not operate electrically, see “DECK PANEL MANUAL OPEN/CLOSE PROCEDURE” to open/close the deck panel. (See DECK PANEL MANUAL OPEN/CLOSE PROCEDURE)

1.  Fully open the deck panel.

2.  Remove the battery cover.

3.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

4.  Set the side shelf out of the way. (See SIDE SHELF REMOVAL/INSTALLATION.)

5.  Remove the deck panel. (See DECK PANEL REMOVAL/INSTALLATION.)

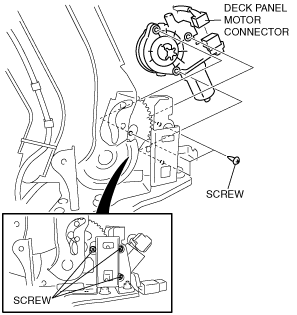

6.  Remove the screws indicated in the figure.

amxzzw00000913

7.  Disconnect the deck panel motor connector.

8.  Remove the deck panel motor.

9.  Install in the reverse order of removal.
