SIDE PANEL REMOVAL/INSTALLATION

id091700454000

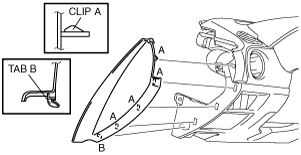

1.  Pull the side panel outward and detach clips A.

e5u917zw5014

2.  Pull the side panel rearward and detach tab B from the dashboard.

3.  Remove the side panel.

4.  Install in the reverse order of removal.
