CONSOLE REMOVAL/INSTALLATION


id091700801200

1.  Remove the battery cover.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3.  Remove the selector lever knob (AT), shift lever knob (MT).

4.  Remove in the order indicated in the table.

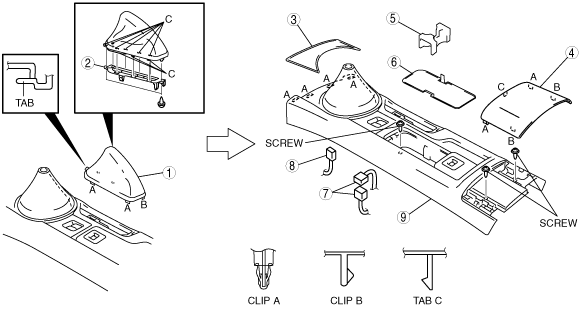

amxzzw00001412

1
Parking brake lever boot
2
Parking brake lever boot plate
3
Rubber mat
4
Rear cover
5
Cup holder guide
6
Box mat
7
Power window main switch connector
8
Indicator compartment connector (AT)
9
Console

5.  Install in the reverse order of removal.
