QUARTER TRIM REMOVAL/INSTALLATION

id091700807400

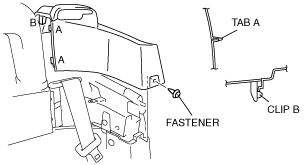

1.  Remove the fastener.

e5u917zw5025

2.  Remove the tabs A.

3.  Pull the quarter trim upward and clips B.

4.  Remove the seat belt from the quarter trim through the slit in the quarter trim and remove the quarter trim.

5.  Install in the reverse order of removal.
