SCUFF PLATE REMOVAL/INSTALLATION

id091700808100

Caution

•  Pull up the scuff plate from the vehicle rear and remove it.

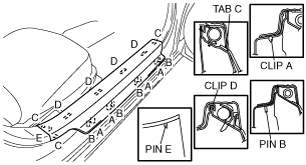

1.  Pull the scuff plate upward while detaching tabs C, and then detach clips A and D, and pins B, E from the body, and remove the scuff plate.

e5u917zw5023

2.  Install in the reverse order of removal.
